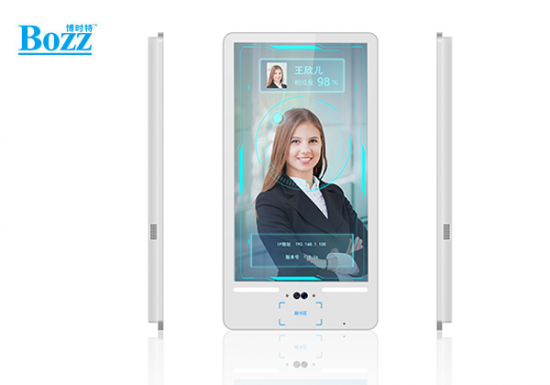

Face Recognition Access Control Advertising Machine_F2154

Model：F2154

Introduction：
* Wide dynamic binocular camera with live body monitoring capability; * Infrared supplementary lighting; * sensitization IC； * Temperature monitoring function module is optional; * Optional human motion detection module; * Supports NFC card reader * Optional accessories include an ID card reader and an 86 installation box. * Supports RS-485 serial port and standard Wiegand interface, with built-in relay, multiple I/O inputs and outputs, and door magnetic sensor output. * Supports deployment methods for public networks and local area networks, with optional 4G communication modules.

application scenarios

Applicable to commercial-residential complexes, office areas, hotels, office buildings, schools, shopping malls, stores, communities, and public service facilities requiring access control permissions and identity verification management.

product features

l Wide dynamic binocular camera with live body monitoring capability;

l Infrared supplementary lighting;

l sensitization IC；

l Temperature monitoring function module is optional;

l Optional human motion detection module;

l Supports NFC card reader

l Optional accessories include an ID card reader and an 86 installation box.

l Supports RS-485 serial port and standard Wiegand interface, with built-in relay, multiple I/O inputs and outputs, and door magnetic sensor output.

l Supports deployment methods for public networks and local area networks, with optional 4G communication modules.

Face Recognition Integrated Terminal
product model		F2154
screen	size	21.5-inch IPS
	resolution ratio	1920*1080
camera	type	multicolour	infrared
	resolution ratio	2 million pixels	1.3 million pixels
	iris diaphragm	F2.4	F2.4
	focal distance	3.0 MM	3.0 MM
	white balance	voluntarily	voluntarily
	Wide Dynamic	support	support
Basic Specifications	operating system	Android 7.1 BOZZ OS
	processor	3288 A174 core processor with 1.8GHz clock speed and Mali T764 GPU Optional configuration: RK3399 A722 + A53*4 with a base frequency of 1.8GHz and Mail T864
	memorizer	2G DDR+ and 8G EMMC are optional: 4G DDR+ with 16G/32G/64G EMMC capacity
	device power supply	DC 12V/ 3 A
	Device power consumption	18 W Max (Reference value)
	relative humidity	0% -90% (in the absence of condensed water droplets)
	working temperature	-10°C～ 55°C
	Storage temperature	-20°C～70°C
	Protection level	IP 54
	service environment	Indoor (covered outdoor)

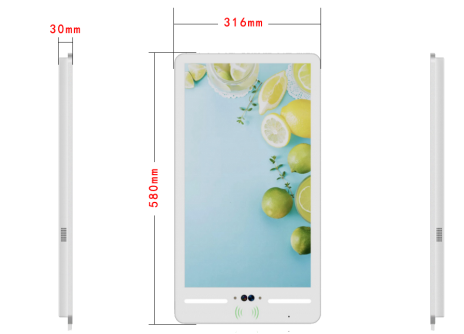

	Device size	316mm* 580mm* 30 mm
hardware configuration	RM	human face
	joggle	USB Type-A * 1
		RJ45 LAN port *1
		Micro-USB debugging port*1
		DC power port *1
		RS 485*1
		Relay switch interface*1
		Standard Weigen interface*1
		I/O port* 2
		SIM card slot* 1 (optional)

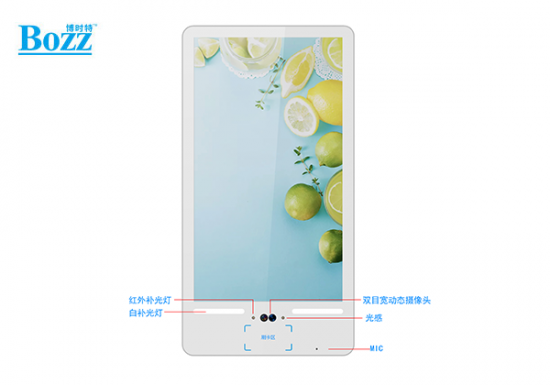

	Infrared supplementary light lamp	support
	White fill light	support
	temperature screening	Supported (Optional: Custom procurement required)
	loudspeaker	3W* 2
essential parameter	WIFI	2.4G supports IEEE 802.11b/g/n standards
	PDA	Supports Bluetooth 2.1/3.0/4.0/4.2
	communication mode	4G full-network compatibility (optional: requires customized procurement)
Package parameters	weight	13 kg (Reference)
	size	330mm* 610mm* 45 mm
