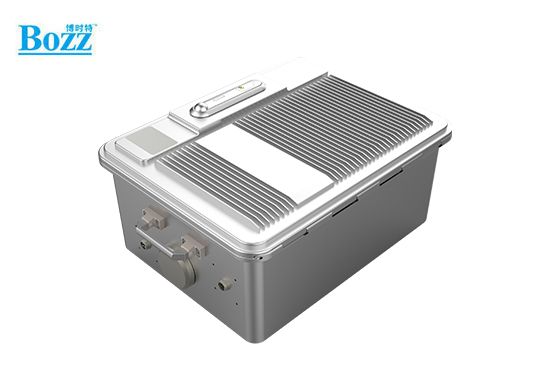

AI Intelligent Transportation Terminal_EC09_Bozz Technology(Shenzhen) Co., Ltd.

Ⅰ. Product Introduction

This device is primarily designed for applications such as utility poles and tunnels along urban arterial roads, general roads, and highway sides. It can integrate with various front-end devices on the road—including cameras, access control cameras, dome cameras, radar systems, pan-tilt units, environmental monitoring equipment, and display panels—to enable intelligent operation and maintenance management. The system ensures stable power supply and network connectivity for monitoring and data collection devices, promptly detects equipment failures, automatically triggers alarms, and reports incidents to the central platform. These features help prevent and reduce traffic accidents while improving traffic flow efficiency.

Ⅱ. Feature Highlights

Made of die-cast aluminum alloy with a thickness of ≥2.5 mm, featuring a powder-sanding finish. The housing offers electromagnetic interference resistance, dust and moisture protection, waterproofing, high-temperature tolerance, and corrosion resistance.
Equipped with a built-in Beidou positioning module that supports automatic positioning and time synchronization services, featuring a one-click time calibration function for front-end cameras in case of time discrepancies.
The Linux system features reserved dynamic environment interfaces, allowing for customized configuration as needed and enabling the transmission of front-end device information back to the platform.

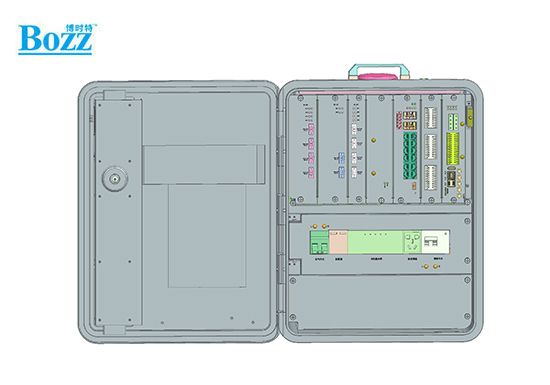

The modular design features card-insertion mechanisms for each functional board, facilitating maintenance.
Supports multiple protocols including HTTP, RS232, RS485, RTSP/RTP, TCP/UDP, GB28181, ONVIF, SNMP, MQTT, Modbus-RTU/ASCII, TCP/IP, as well as Master and Slave configurations.
Automatically adapts to universal IoT transmission protocols for rapid device connectivity;
Supports multiple power output specifications including AC220V, DC12V, AC24V, and DC36V, enabling direct power supply to various equipment types along the route.
Power supply for sensing devices and control terminals, perfectly suited for scenarios with diverse power supply types and dispersed equipment on highways;
Intelligent temperature control ensures continuous normal operation of the equipment under abnormal conditions;
Supports 4G wireless network expansion, with dual-link network transmission capability.
Supports the Bypass feature extension to maintain network connectivity during device failures or abnormal conditions, ensuring uninterrupted critical operations.
Supports expanded SSD high-capacity storage to meet large-scale data storage requirements;
It features a managed switch with support for remote management ports and monitoring via WEB, SSH, and TELNET.

name		Specification Description
box	Material, Size	manufactured using integrated die-cast aluminum alloy, it features rain and dust resistance, ventilation and heat dissipation, UV resistance (anti-aging), theft prevention, rust resistance (for high-humidity environments), acid and alkali corrosion resistance (for coastal areas), and electromagnetic interference resistance (anti-EMP for lightning protection).

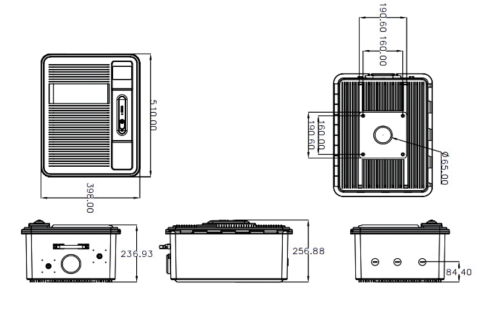

	way to install	Supports three mounting options: back flange fixation, clamp installation, and wall-mounted fixation; cable holes are reserved on the back and bottom.
	levels of protection	IP55/65
power input	input voltage	165-280VAC
environmental specification	working temperature	-40～+85°C
environmental specification	working temperature	5% to 95% relative humidity (no condensation)
processor	processor	RK3576J octa-core
internal storage	internal storage	4GB LPDDR4/4X or LPDDR5/5X;
NPU		6TOPS；
eMMC	eMMC	32GB
master control	Interface	RS232 communication interface 2 RS485 communication interface 2 4-channel AI analog signal 4 DI4 DO4 TTL interface1 CAN1 USB 2.0 1 USB 3.01 Type-C debugging port 1
operating system		Supports Linux embedded systems and Ubuntu
safe	Built-in encryption chip	With an integrated encryption chip, it provides comprehensive protection for network access security, network defense security, and data transmission security.
Highly Reliable		Link detection and embedded hardware/software watchdogs enable self-repair functionality for device operational failures.
wireless network	PDA	Supports low-power Bluetooth BLE 5.2
orientation system	Shandubao	Supports single-beidou dual-frequency positioning module
Built-in emergency power supply module	UPS supply electricity	The device must remain powered on for more than 22 seconds after power loss.
DC12V power supply output module		2 DC 12V (2A) channels per channel, supporting voltage and current detection as well as remote control.
AC24 Power Supply Output Module		2 AC 24V (8A) channels per channel, supporting voltage and current detection, and remote control.
air switch		2P rail-mounted circuit breaker, rated current 63A
Power surge protector		AC220V power supply with lightning protection and remote status monitoring support Nominal discharge current: 20 kA; Maximum discharge current: 40 kA; Maximum continuous operating voltage: 385 V; Rating voltage: 220 V; 2P DIN35mm standard rail mounting
autoreclose circuit breaker		The 63A automatic reclosing device supports remote closing and features overvoltage, undervoltage, leakage current, short-circuit, and overcurrent protection. It includes pre-power-on closing condition detection.
Power socket repair	AC 220V maintenance power supply output for Route 1	5-pin socket, rail-mounted installation, maximum current 10A
Smart Circuit Breaker		AC220V 63A, supporting status monitoring (including voltage, current, and energy consumption) and remote switching functionality, with protection features against short circuit, leakage current, overcurrent, overload, overheating, arcing (due to poor contact or insulation damage), overvoltage, and undervoltage.
Water Immersion Module		Water immersion sensor: The device automatically triggers an alarm upon detecting water immersion.
Temperature and Humidity Monitoring Module		Temperature and humidity sensor for real-time monitoring of internal temperature and humidity within the chamber
Automatic lighting fixture		The box is equipped with a lighting fixture that automatically illuminates upon opening and turns off when the door is closed.
Electronic lock		Planar lock, zinc alloy, with electronic control and NFC functionality
