product model

F6 30C-P

screen

size

5"+ 5"

resolution ratio

Main screen: 5-inch 800*480; secondary screen: 5-inch 480*854

Basic Specifications

operating system

Android  8.1 BOZZ OS

processor

RK PX 30  Quad- core Cortex- A35 up to 1.5GHz Mali-G31 GPU

internal storage

Available options: 1G DDR+ 8G EMMC or 2G DDR+16G EMMC

device power supply

12V/ 2 A

Device power consumption

2 5W   Max

relative humidity

0% -90% (in the absence of condensed water droplets)

working temperature

0°C～5 0°C

Storage temperature

- 10°C～7 0°C

service environment

indoor

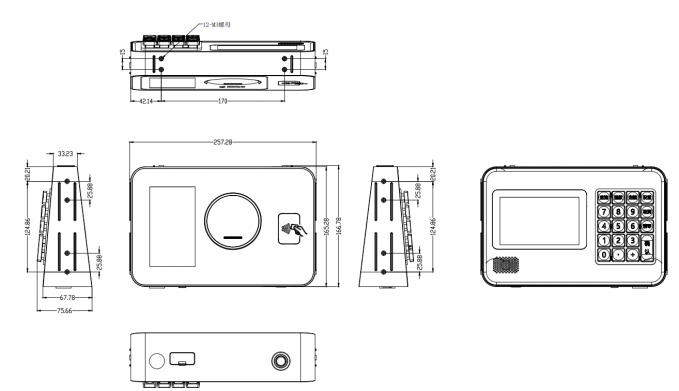

Device size

257*167*76 mm (Reference dimensions; actual size may vary)

device interface

USB TypeC*1

TF card slot*1

Supports 4G card slot* 1 (optional)

buttcock line

RJ45* 1

DC*1

USB Type A*1

loudspeaker

3W* 1

fingerboard

Supports 1 9-key mechanical keyboard

NFC

Supports M1 card and CPU card

Built-in palm scrubbing module

function

Supports palm vein recognition

Supports one-dimensional, two-dimensional, mobile screen, and printed barcode scanning

Built-in battery available

battery capacity

3.7V 2000mAh*2 series connection

essential parameter

Wired network

Supports Ethernet

WIFI

2.4G supports IEEE 802.11b/g/n

PDA

Supports Bluetooth 2.1/3.0/4.0/4.2

communication mode

4G full network coverage

Package parameters (reference data)

Product weight

1.19 kg ± 5% (Reference data, subject to actual measurement)

Single unit packaging weight

1.7 kg ± 5% (Reference data, subject to actual measurement)

Large box packaging weight

9.0 kg ±5% (5 units per box) (Reference data, subject to actual product)

Single unit packaging size

310*291*105 mm ±5% (Reference data, subject to actual product dimensions)

Large box packaging size

570mm*325*310 mm ±5% (Reference data, subject to actual product dimensions)
