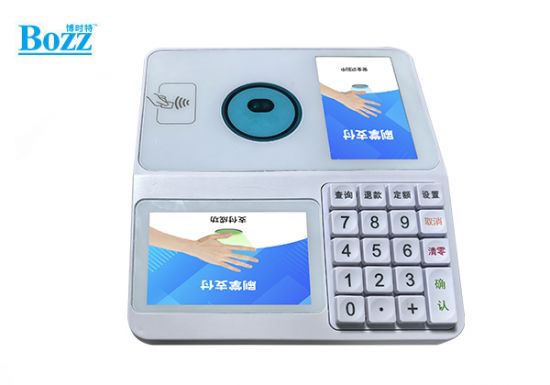

product model

F630C-PD

screen

size

5"+5"

resolution ratio

854*480+800*480 / Compatible with other backup screens (to be determined)

Basic Specifications

operating system

Android  8.1   BOZZ OS

processor

RK PX 30  Quad- core Cortex- A35 up to 1.5GHz Mali-G31 GPU

internal storage

Available options: 1G DDR+ 8G EMMC or 2G DDR+16G EMMC

device power supply

12V/2A

Device power consumption

25W  Max

relative humidity

0%-90% (in the absence of condensed water droplets)

working temperature

0°C～50°C

Storage temperature

-10°C～70°C

service environment

indoor

Device size

254*225*71 mm (Reference dimensions; actual size may vary)

joggle

USB Type-A *1

RJ45 LAN port *1

Type-C debugging port*1

DC power port *1

Supports SIM card slot*1 (optional)

Supports Micro TF card slot*1

loudspeaker

3W*1

fingerboard

Supports 19-key mechanical keyboard

NFC

Supports M1 card and CPU card

Built-in palm scrubbing module

function

Supports palm vein recognition (hardware module only)

Supports one-dimensional, two-dimensional, mobile screen, and printed barcode scanning

Optional camera

camera

200W dual-camera system

Built-in battery available

battery capacity

3.7V 2000mAh*2 series connection

essential parameter

Wired network

Supports Ethernet

WIFI

IEEE 802.11 b/g/n standard with built-in wireless networking

PDA

Supports Bluetooth 2.1/3.0/4.0/4.2

communication mode

4G universal network support (optional)

Package parameters

（ reference data ）

Product weight

1.2 kg ± 5% (Reference data, subject to actual measurement)

Single unit packaging weight

1.6 kg ± 5% (Reference data, subject to actual measurement)

Large box packaging weight

8.7 kg ±5% (5 units per box) (Reference data, subject to actual product)

Single unit packaging size

335*115*325 mm ±5% (Reference data, subject to actual product dimensions)

Large box packaging size

615*350*335 mm ±5% (Reference data, subject to actual product dimensions)
