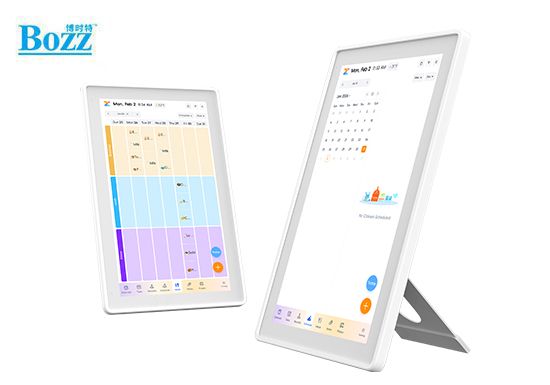

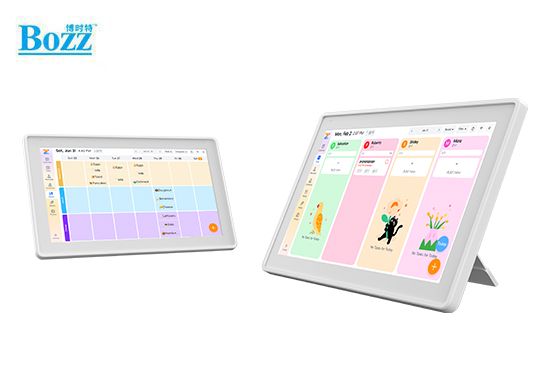

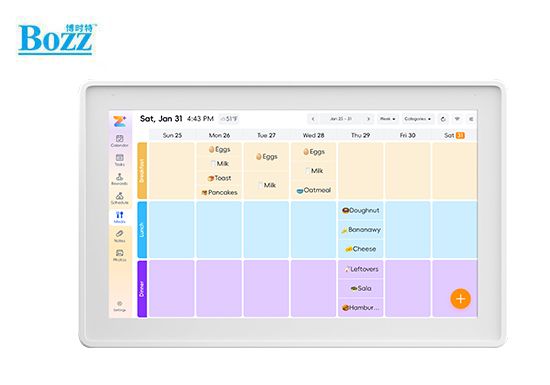

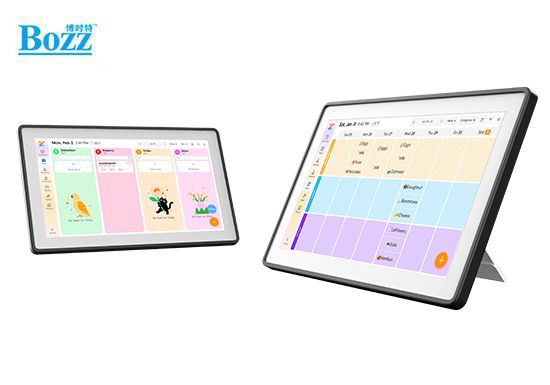

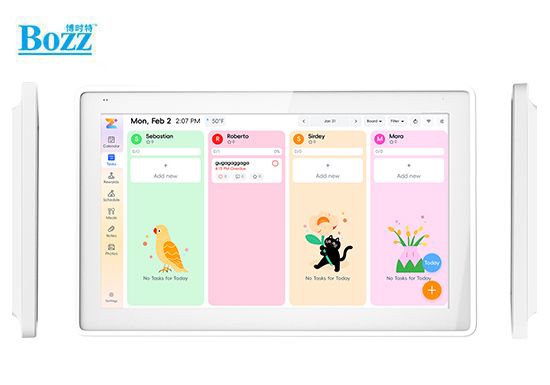

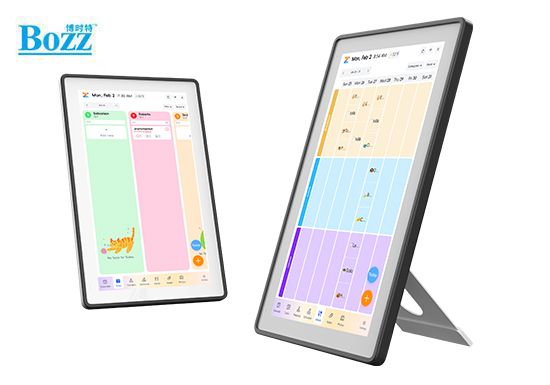

15.6-inch calendar photo frame_CPF1568

Model：CPF1568
Introduction：

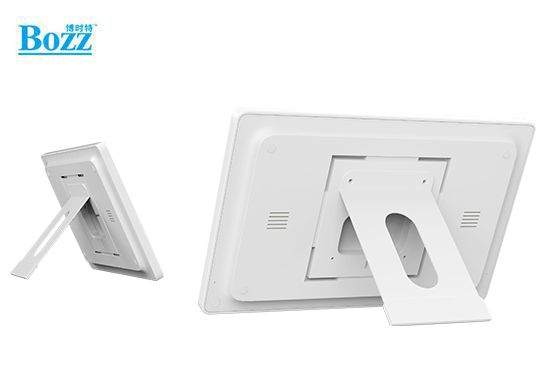

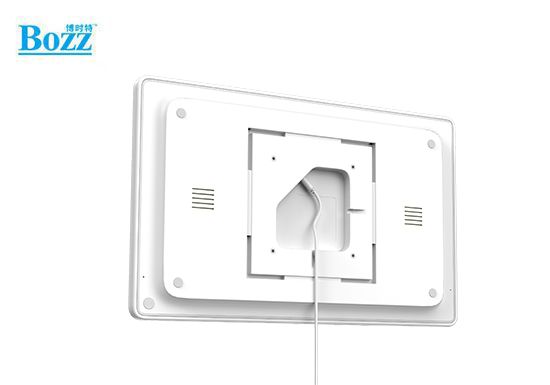

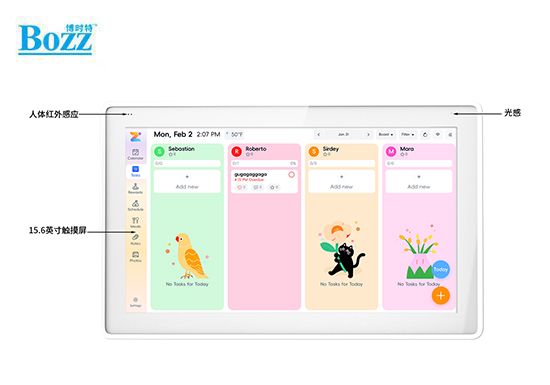

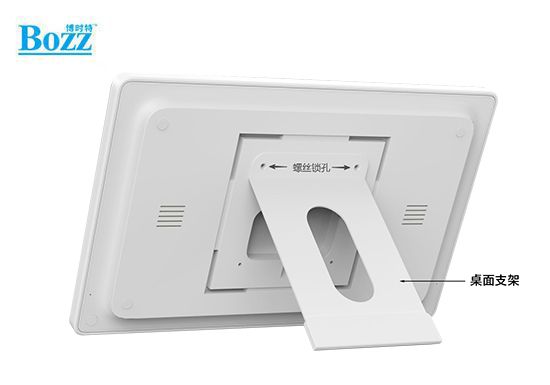

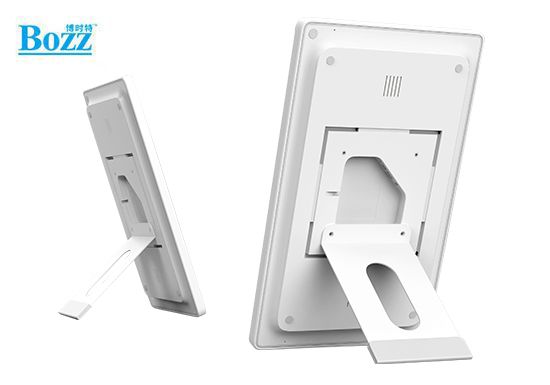

* Size: 15.6 inches * Appearance color: White, Black * Frame color: White, Space Gray, Blue, Black, Pink, Water-transfer Wood Grain, Solid Wood * Dual brackets for desktop and wall mounting; supports desktop placement or wall hanging * Quad-core processor, 1GB RAM, 16GB storage * Dual microphones, dual speakers, light sensor, PIR human body infrared sensor

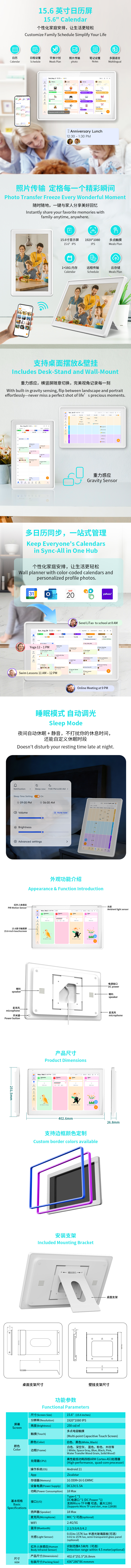

CPF1568 日历相框2.jpg

Calendar Frame
product model		CPF1 568
screen	size	1 5.6 inches
	resolution ratio	1 920* 1080
	luminance	250 cd/㎡
	touch control	multi point capacitance touch screen
surface	pigment	White, Black
surface	cheek	White, Space Gray, Blue, Black, Pink, Wood Grain Water Transfer, Solid Wood
Basic specifications	operating system	Android 11
	App	Zicalstar
	processor	High performance and low power consumption quad-core ARM Cortex-A53 processor
	memorizer	2G DDR+ 32 G EMMC
	device power supply	DC12V/1.5A (1.8 meters, outer diameter 3.5mm, AWG 22W)
	Device power consumption	1 8 Max
	relative humidity	0%-90% (in the absence of condensed water droplets)
	working temperature	0°C～45°C
	storage temperature	-20°C～70°C
	service environment	indoor

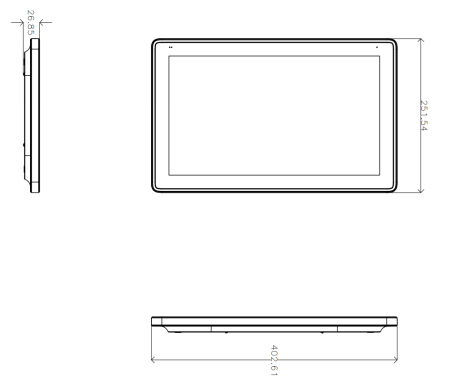

	Device size	402.6mm251.5mm26.8mm

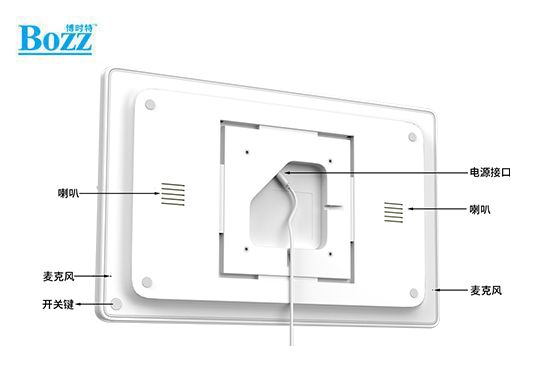

	joggle	Reset key *1
		Type-C *1
		DC power port *1
		Supports micro TF card slot (optional), up to 128GB
	loudspeaker	8 euros for 10,000 units *2
	microphone	MIC *2 optional
essential parameter	WIFI	2.4G/5G supports IEEE 802.11b/g/n
	PDA	Supports Bluetooth 2.1/3.0/4.0/4.2
	light sensation	0.01 to 157K lux semi-transparent glass panel （ selectable ）
	Human body infrared sensing	Recognition range up to 4.5 meters, with optional panel openings
Package parameters	weight	TBD
Package parameters	size	43628686 mm
